Suzuki DR650


Model Power @rpm Torque @rpm Dry
Fuel tank Price
(at Mar 08)
Suzuki DR650 43hp 6,400 54Nm 4,600 147kg 885/845mm 13 litres $7,690 plus orc

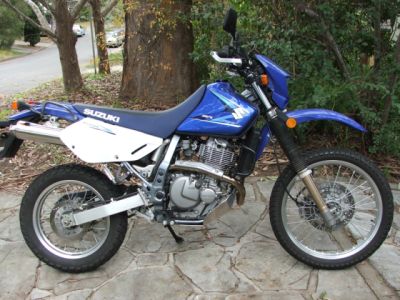

My DR650

DR650 links;
- Specs
- Suzuki Australia
- Jesse, Kientech Engineering - DR650 page
- TPI Wholesalers - DR650 page
- Top Gun Motorcycles - parts page
- Multisurface Motorcycling
- ProCycle - DR650 page
- Happy Trails - DR650 page
- Lowering the DR
- DR wiki

- Adventure Rider
- Thumpertalk

Suggested mods;
- Metzeler Enduro 3 Sahara tyre 90/90-21 front ($129) and Mitas 130/80-17 E-07 rear ($137)
Tried Metzeler rear ($179). Hoping for similar performance but lower cost from the Mitas
- Renthal bars, Jimmy Button bend ($70)
- ProGrip gel road handgrips ($16)
- Barkbuster VPS handguards ($105) and mounts ($40)
- KTM folding mirrors (US$61 plus US$20)
- B&B bashplate ($170)
- Ventura headlight guard VP012 ($35)
- Eibach 0.47kg/mm fork springs P/N 996.047.1 (US$100 plus US$55) and 2 x 1 litre 10w Motul fork oil (2 x $19)
(standard; fork springs 0.40 kg/mm, shock spring 6.5 kg/mm)

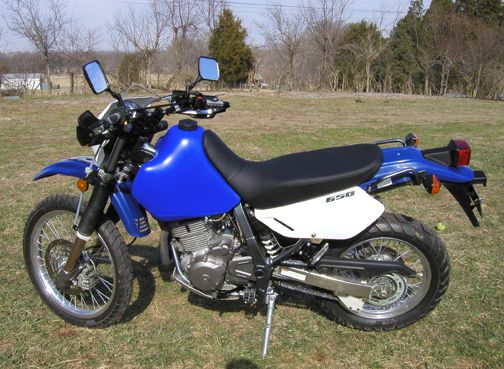

- IMS 19 litre tank from JustGasTanks (US$243 plus US$60 shipping) with Acerbis locking gas cap (US$23)
- JT 14 tooth front sprocket (US$12)
- MSM trimmed sprocket plate (US$10)
- Remove top chain roller and fill hole with button head screw (M8 x 15 mm)
and replace bottom roller with bearing type for reduced noise (US$13)
- Secondary air filter (US$15 plus US$27 postage and handling - 4 items)
- TPI rear master cylinder guard (US$14)
- TPI magnetic drain plug (US$11 plus US$32 postage and handling - 3 items)
- remove sidestand cutout switch and jumper
- unplug clutch cutout switch plug together bike end
- disable carburetor microswitch by unplugging and jumpering
Carb setup (standard airbox, filter and snorkle);
(standard; Mikuni BST 40SS, main 140, pilot 42.5, needle 6F19 clip on 3rd slot)
--- 142.5 main jet (N100.604 Large Round type) - Jet supplier ($9 plus $5 postage)
--- fit Keintech extended pilot screw (US$15) and turn out 1.5 turns
--- replace screws with allen head US$3 (you will probably stuff the philips heads)
--- Note; I removed the snorkle but replaced it after my fuel economy dropped by 8%
- Steel case saver with aluminimum cover made by Ian Taylor ($80)
- AMP ignition and clutch guards (US$60 plus US$14 shipping)
- EBC brake pads; front FA185R (US$32) and rear FA152R (US$30 plus US$17)
- Remove carb input filter and install inline fuel filter (US$9)
- Wolfman Enduro tank bag ($112) and Tool Roll ($35)
- Wide 'IMS style' footpegs (US$19 plus US$10 postage)
- 'BBQ' cargo rack (US$67 plus US$43 postage and handling)

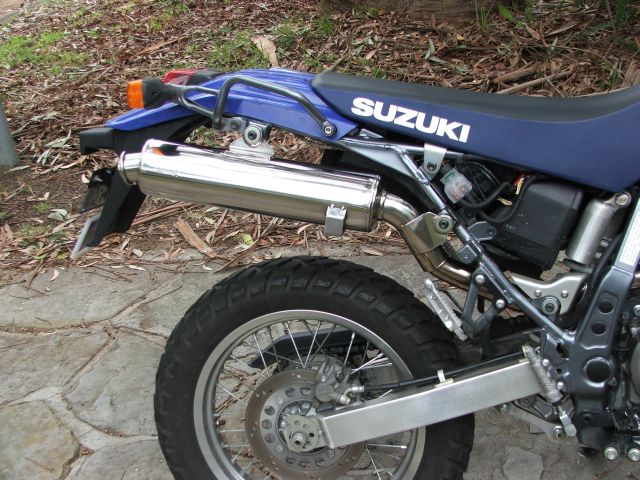

- Staintune oval stainless muffler SU MS DR 65 ($640) and header SU HS DR 65 ($300)
- Sargent seat (US$335 plus US$75 shipping)

- Eibach 7.6 kg/mm shock spring (US$130 plus US$60?)
- Moto-sport panniers (US$469 plus US$60?)
- Narva 'Plus 50' (actually Osram Silverstar) H4 55/60W headlight bulb ($33 pair) with TPI heavy duty headlight harness (US$53)
- Suzuki black side covers (left and right) with heat shield for right side ($262)
- 'Screens for Bikes' screen with dark tint ($130) - pic 1 and pic 2
- Acerbis supermoto front guard (approx $50) ?

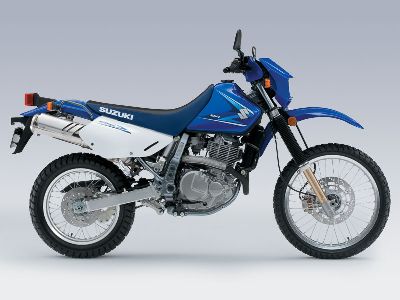

DR650SE 2008
